Product Details

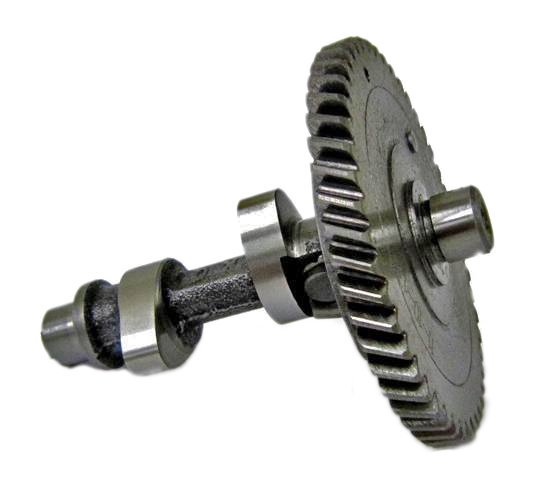

- The 315 lobe design is the next step above our proven 308. With slightly more lift and increased duration, the 315 will make more top end power for an OHV modified engine. This cam requires an upgraded spring package, billet rod, and billet flywheel.
- The Lobes on this Cam are Welded for extra durability.
Specs
| Engine: | 196cc OHV Clone, 212cc Hemi Predator |
|---|---|
| Recommended Class: | Modified |
| Target (MAX) RPM: | 9000 |
| Spring Pressure (In / Ex): | 34-36 lbs |
| Valve Lash (In/Ex): | .003″ |
| Ignition Timining: | 34 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 49.80 BTDC | 99.65 BBDC |
| Close: | 98.80 ABDC | 63.05 ATDC |
| Lift: | .3135″ | .3135″ |
| C/L: | 108.0 ATDC | 108.0 BTDC |
| DUR @ 50: | 249.65 Deg | 253.40 Deg |
